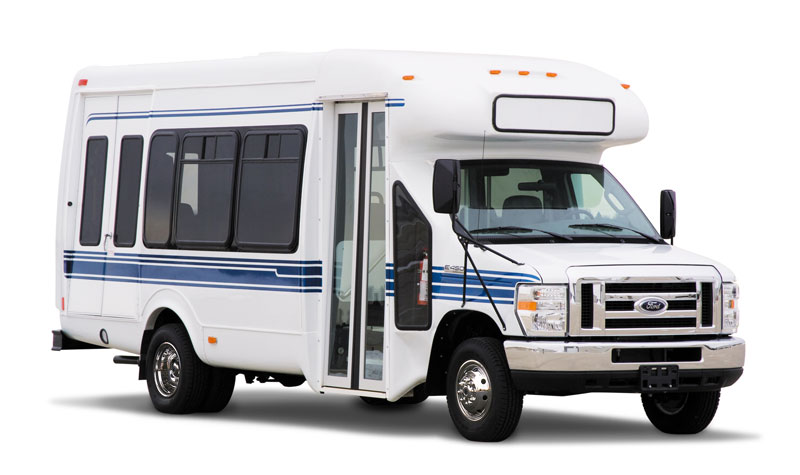

Long-lasting durability comes easy for the StarTrans Senator by Supreme. That’s because it’s one of the few buses that uses a combination of steel cage construction for optimum safety and overall structural strength and a tough fiberglass skin to resist stains, scratches and corrosion. Plus, fiberglass-reinforced panel (FRP) sidewalls eliminate exterior noise and are extremely strong and rugged to withstand difficult road conditions.

SUBFLOOR
12-gauge steel outriggers, fully welded with floorlevel Z rail, incorporated with chassis rubber ride capabilities.

FLOORING
3/4" FRP, undercoated. Floor covered with 1/8" transit rubber. Aluminum heat shield over chassis catalytic converter and muffler.

SIDEWALLS
3/4" polyurethane foam insulation (R-6) gelcoated to 1/4" FRP exterior with 1/4" FRP interior. Reinforced with steel perimeter and transverse supports. Completely fiberglassed to adjoining body parts to form a single unitized body.

ROOF
One-piece FRP/Nidacore laminate roof with steel cage reinforcement.

WINDOWS
24" x 34" T-slider, 31% tinted. Clamp ring-style radius windows. Egress  windows installed to meet FMVSS 217 requirements. Operator’s curbside windows AS-2 rated: 442 square inches visibility.

ENTRY
Spacious entrance (32" x 83" clear opening) with doors that operate manually or electric. Door panels have full height glass panels for the best possible driver’s visibility. White step nosing and lighted stepwell standard. Entrance grab rail (left side).

LIGHTING
Each bus comes standard with six passenger courtesy lights.

ELECTRICAL
Wiring is color-coded with the number and function designated every 12" on the wire to enable identification and circuit trace ability. Only premium components built to meet the Society of Automotive Engineers (S.A.E.) and Underwriter’s Laboratories (U.L.) requirements are used. Electronic control console switch panel.

OPTIONAL A/C & HEAT
A/C systems ranging in size from 30,000 BTU to 88,000 BTU. Rear heat 20,000 BTU to 65,000 BTU.

OPTIONAL PARATRANSIT

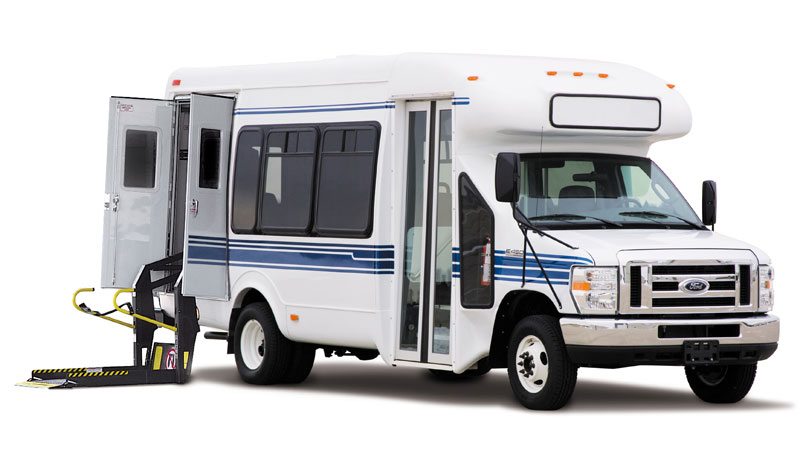

Wheelchair accessibility with a wide range of securement systems and seating arrangements.

OPTIONAL LUGGAGE
Luggage can be stored in over-seat, floor-to-ceiling, rear compartments or custom-designed areas.

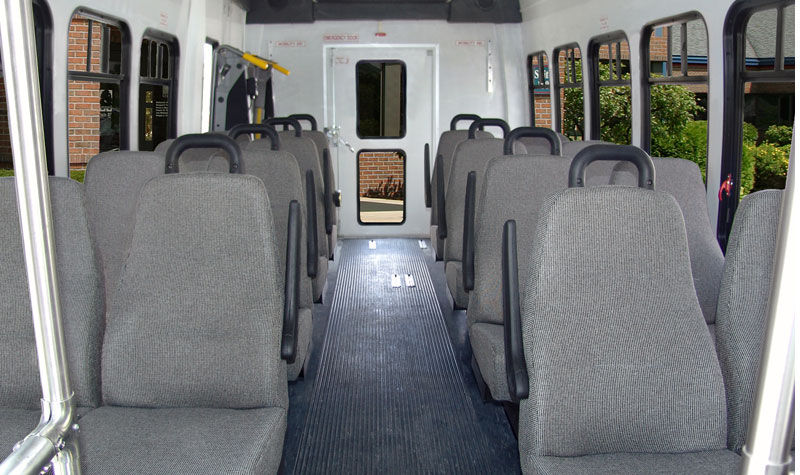

OPTIONAL SEATING
Forward-facing, perimeter-style and track seating are all available. Your choice of vinyl and cloth fabric in a wide range of colors.

• Bright white gelcoated body with choice of three standard striping packages.
• Black exterior mirrors – 8" x 15
• Heavy-duty 10-gauge wraparound bumper with anti-ride cover.
• Mud flaps (front and rear).
• 12-month/12,000 mile with five-year/75,000-mile warranty of body structure.

• E350 and E450 cutaway
• Tinted glass
• Automatic transmission
• 4:10 and 4:56 rear axle ratio
• Power steering
• Power brakes (4 wheel disc)
• Dash A/C and heater
• Auxiliary transmission cooler (gas chassis only)
• Super engine cooling
• Tilt steering and cruise control
• 5.4 or 6.8 gas engine and 6.0 diesel
• 37-gallon fuel capacity on E350
• 55-gallon fuel capacity on E450
• Radial tires LT225-16 E
• Chrome front bumper
• Comfort ride suspension – H.D. springs and shocks
• Engine oil cooler (diesel chassis only)
• Engine gauges
• Heavy-duty batteries
• Dual 140 & 120 amp – diesel Single 135 amp – gas
• 138", 158" or 176" wheelbase
• GVWR 11,500 to 14,500

• Exterior width – 96"
• Exterior height – 114"
• First step to ground – 111/2" second and third step riser – 9" max.
• Step tread depth – 9" max.
• Entrance clear opening – 32" x 83" min.
• Interior width at seat level – 921/2"
• Interior width up 36" from floor – 933/8"
• Center aisle height – 801/2"
• Flat floor aisle height – 75"
• Double wheelchair doors – 46" x 70.5"
• Rear luggage compartment – 141 cubic feet (standard)
